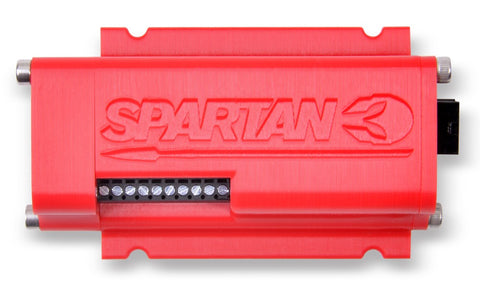

Spartan 3
by 14Point7
This product is not available
Due to illness, retail sales have been suspended until further notice.
Spartan 3 Features:
- 10ms Response Time
- 1x Programmable Linear voltage output for Lambda/AFR/%Oxygen
- 1x simulated narrowband output
- Compatible with Bosch LSU 4.9, Bosch LSU ADV, and clone LSU 4.9 sensors. The LSU ADV sensor provides a 20x resolution increase over the LSU 4.9.
- Lambda range of 0.6[Lambda] to 3.4[Lambda], equivalent to 8.82[AFR] to 50[AFR] for gasoline
- %O2 range of 0%O2 to 21%O2
- Lean Burn mode for lean burn applications
- CAN Bus support for the following ECUs; Megasquirt 3, Adaptronic, Link, Haltech, as well as YourDyno dyno controller are supported. More supported devices coming soon via firmware update
- CAN Bus output of Lambda or %O2
- Smart Heatup; RPM Triggered Heating of the oxygen sensor for MS3 ECU.
- Smart Heatup; Temperature Triggered Heating, Spartan 3 will wait for the Oxygen sensor to be heated to 350C by engine exhaust gas before heating up the sensor
- Does not require Free Air Calibration but FAC is available. Recommended only for clone LSU 4.9 sensors
- Compatible with Torque OBD for Android to display AFR
- Onboard FTDI based serial-USB converter
- ARM Cortex M4
- 0.1% tolerance components for all components that affect accuracy
- 4 layer Printed Circuit Board
- Separate grounds and power connections for LSU Heater and electronics for improved noise performance and improved voltage protection
- 2-year warranty
- 60-day money-back guarantee
Note: Lambda sensor carries a 3-month warranty
Spartan 3 Lite Features:
- 10ms Response Time
- 1x Programmable Linear voltage output for Lambda/AFR/%Oxygen
- 1x simulated narrowband output
- Compatible with Bosch LSU 4.9, Bosch LSU ADV, and clone LSU 4.9 sensors. The LSU ADV sensor provides a 20x resolution increase over the LSU 4.9.
- Lambda range of 0.6[Lambda] to 3.4[Lambda], equivalent to 8.82[AFR] to 50[AFR] for gasoline
- %O2 range of 0%O2 to 21%O2
- Lean Burn mode for lean burn applications
- Smart Heatup; Temperature Triggered Heating, Spartan 3 will wait for the Oxygen sensor to be heated to 350C by engine exhaust gas before heating up the sensor
- Does not require Free Air Calibration but FAC is available. Recommended only for clone LSU 4.9 sensors
- UART
- ARM Cortex M4
- 0.1% tolerance components for all components that affect the accuracy
- 4 layer Printed Circuit Board
- Separate grounds and power connections for LSU Heater and electronics for improved noise performance and improved voltage protection
- 2-year warranty
- 60-day money-back guarantee
- Spartan 3 Lite does not have CAN Bus
Note: Lambda sensor carries a 3-month warranty
Additional Features and Specifications:
- 8 ft cable length
- Operating Temperature: -40[C] to +105[C]
- Spartan 3 dimensions: 115mm x 60mm x 26mm
Pricing:
- Spartan 3 Lite without LSU @ $109 USD
- Spartan 3 Lite with LSU 4.9 @ $159 US
- Spartan 3 Lite with LSU ADV @ 209 USD
- Spartan 3 without LSU @ $139 USD
- Spartan 3 with LSU 4.9 @ $189 USD
-
Spartan 3 with LSU ADV @ 239 USD
If Spartan 3 is ordered with a sensor, Spartan 3 will ship configured for that sensor. If Spartan 3 is purchased without a sensor then Spartan 3 will ship configured for the LSU 4.9, the user can change the sensor settings using a serial terminal. You can also request LSU 4.9 and LSU ADV configuration at the time of ordering using the order notes
Testimonials
Software and Documentation
Package Contents
- Spartan 3/Lite Lambda Controller
- 8ft lambda sensor cable
- 2x fuse holder
- 2x 5 Amp fuse (replacement included)
- 2x 1 Amp fuse (replacement included)
Spartan 3/Lite Compatible Products:
Solid AFR Gauge
Premium Oxygen Sensor Bung
Standard Oxygen Sensor Bung
Bosch LSU ADV
Bosch LSU 4.9
Premade Bosch Cable for LSU 4.9 and ADV
