iDash

by 14Point7
Price $199.00

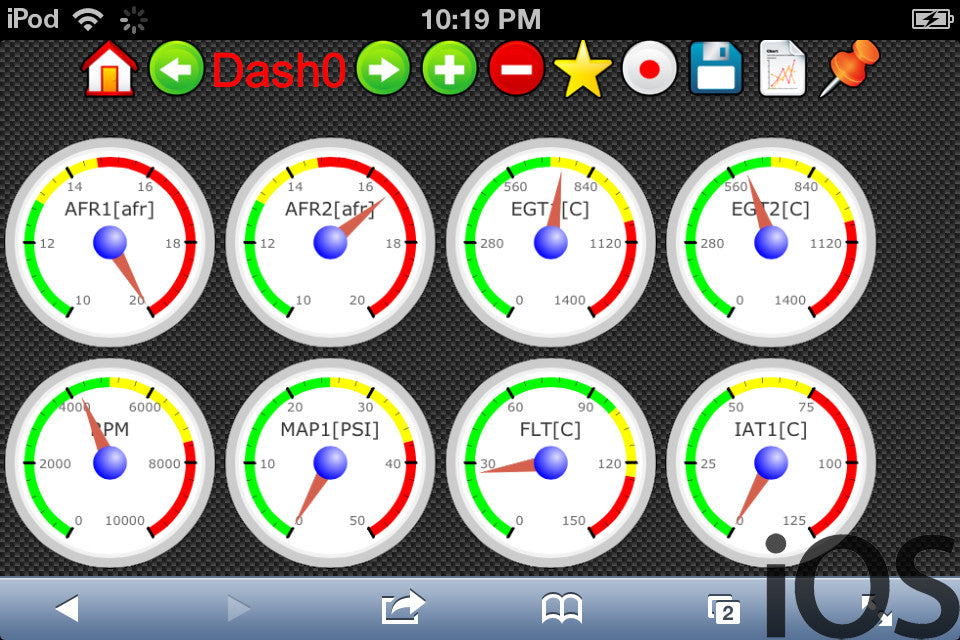

A virtual dashboard on your phone, tablet, or PC. iDash leverages the latest web and Wi-Fi technology to allow your engine to speak directly to you through your web browser. iDash virtual dashboards are touch enabled - adding and changing gauges, plotting, graphing, and data-logging is a mere touch away.

Optimised for iPhone, iPad, Android, BlackBerry, Windows, and Linux. iDash not only speaks all those languages, but can also speak them all at once. Create your own custom virtual dashboard on just one device, or across several devices simultaneously.

Have the latest phone or tablet? Run the modern HTML5 or Adobe Flash interface for a graphically rich experience.

Have an early generation phone or tablet? Run our efficient HTML interface for a streamlined experience.

Want a unique virtual dashboard that fits with your interior? Upload custom dashboards of your own design, if you can make a webpage you can make your own custom dashboards.

Never worry about iDash being obsolete - with enough onboard memory for storing hundreds of webpages, firmware and webserver upgradeablility over Wi-Fi, as web standards evolve so will iDash.

With its Wi-Fi connectivity, total device compatibility, and more sensor inputs than any comparable product, iDash is the ultimate tuning tool you need to unleash the full potential of your engine.

14Point7 stands behind this product with a warranty that is twice as long as any competing product. With an unrivaled 60 day money back guarantee, you can buy with confidence and know that you are getting the absolute best.

Note: If purchased with the Lambda option, the included sensor is a Bosch OEM sensor. The "head" of the sensor and it's internal sensing elements are made by Bosch, the cabling and calibration is done by a 3rd party.



Features:

Wi-Fi b/g connectivity for simple and quick connections between iDash and your phone, tablet, or PC



Compatible with your favorite hardware and OS
full space
Compatible with your favorite web browser
full space
Chose from 3 interfaces:
  • HTML5 interface for a graphically rich experience
  • Adobe Flash interface for an attractive and smooth experience
  • HTML interface for a streamlined and efficient experience
full space
Connect multiple devices simultaneously and mix different devices and browsers to create a custom virtual dashboard across multiple screens
full space
Upload your own custom HTML and HTML5 webpages for a truly unique virtual dashboard
full space
32 mb of onboard memory for storing up to 1.5 hours of data-logging
full space
Built in RPM Pickup - 0[RPM] to 20000[RPM]
full space
Shaft RPM Sensor input - monitor your transmission and wheel slippage, 0[RPM] to 10000[RPM]
full space
Built in Dual Axis Accelerometer - measures both cornering and acceleration/deceleration G-forces
full space
8x Exhaust Gas Temperature probe inputs, 0[F] to 2500[F], 0[C] to 1400[C]
full space
Dual Boost/Vacuum sensor inputs, 0[PSI] to 44[PSI], -30[Hg] to 88[Hg]
full space
Dual Intake Air Temperature sensor inputs, 0[F] to 300[F], 0[C] to 150[C]
full space
Fuel Pressure sensor input, 0[PSI] to 150[PSI], 0[Hg] to 250[Hg]
full space
Oil Pressure sensor input, 0[PSI] to 150[PSI], 0[Hg] to 250[Hg]
full space
Fluid Temperature sensor input, 0[F] to 300[F], 0[C] to 150[C]
full space
Dual 0-5 Volt inputs
full space
A Two-year warranty, twice as long as any competing product
full space
60 day money back guarantee



 Wideband O2 Option Features:

iDash utilizes the Bosch LSU 4.9 Wideband O2 Sensor - a cost efficient Wideband O2  sensor providing 0.01 Lambda accuracy, fast response, and rated life of 100,000 km
full space
Upto dual onboard Wideband O2 Controllers
half space
Compatible with all fuel types
half space
Ultra wide AFR/Lambda range, 0.68[Lambda] to 100[Lambda], 10[AFR] to 100[AFR] equivalent for gasoline
full space
0.01 Lambda accuracy without the need for any calibration
half space
Although not required (or recommended), Free Air Calibration is supported
full space
O2 Sensor Temperature Monitor
half space
Did you know that the most common cause of inaccuracies and premature O2 sensor failure is attributed to the O2 sensor temperature being improperly controlled? Only 14Point7 branded Wideband O2 Controllers are able to monitor O2 sensor temperature
full space
Linear Output allows easy interfacing with gauges, fuel management systems, and data-loggers
half space
Linear Output: 0[v]@0.68[Lambda] linear to 5[v]@1.36[Lambda], 10[AFR] linear to 20[AFR] equivalent for gasoline
full space
Our innovative Output Sequencer feature means our Wideband O2 Controllers to have the most accurate Linear Output on the market. You can be sure that any device connected to the Linear Output will receive the most accurate AFR/Lambda signal possible
half space
The Output Sequencer provides a dual level precision voltage signal to the Linear Output. This allows you to easily check that the AFR/Lambda seen by any device connected to the Linear Output is accurate, and if not, to generate a 2 point calibration to achieve perfect accuracy
full space
Simulated Narrowband Output allows you to install a Wideband O2 Sensor in place of your Narrowband O2 sensor
half space
Switch point @ 1[Lambda], 14.7[AFR] equivalent for gasoline



full space
Testimonials

"Instantly transformed my cutting edge mobile device into a cutting edge engine analytical tool"
T. Williams, satisfied iDash customer

"iDash was the ultimate tool to unleash my engine's inner beast"
J. Carver, satisfied iDash customer

"Effortlessly displays everything I need to know about my engine on my iphone and Droid tablet at the same time"
A. Riley, satisfied iDash customer

"iDash help me win 4 of 5 best of show categories"
B. Lee, satisfied iDash customer

Software and Documentation

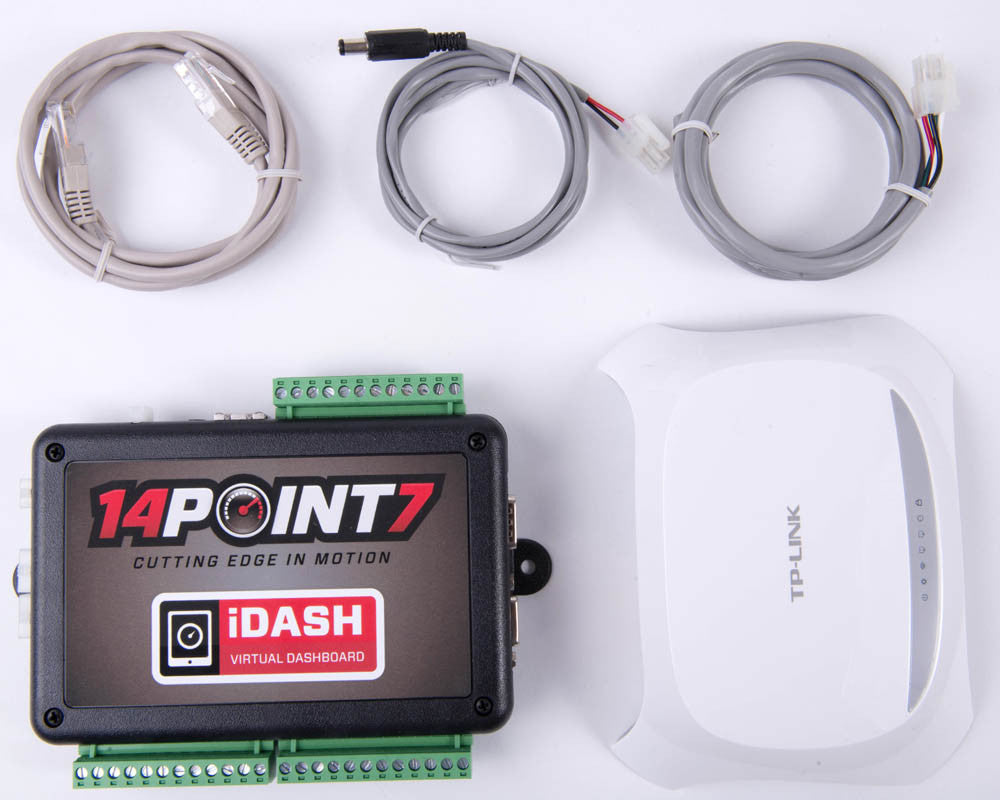

Package Contents

iDash Basic includes the following items:

  • iDash unit (6x4x1 inches)
  • Wireless router (2.5x1x0.5 inches, new router model)
  • 4ft 4-conductor 18 AWG iDash power cable
  • 2ft 2-conductor 20 AWG router power cable (connects to iDash for power)
  • ethernet cable
  • 1A replacement fuse



iDash Single Wideband O2 includes the following items:

  • iDash unit (6x4x1 inches)
  • 1x Wideband Controller module installed into iDash
  • 1x LSU 4.9 Wideband O2 sensor
  • 1x 8ft 6-conductor 18 AWG Wideband O2 sensor Cable
  • 1x O2 bung
  • Wireless router (2.5x1x0.5 inches, new router model)
  • 4ft 4-conductor 18 AWG iDash power cable
  • 2ft 2-conductor 20 AWG router power cable (connects to iDash for power)
  • ethernet cable
  • 1 Amp replacement fuse
  • 10 Amp replacement fuse



iDash Dual Wideband O2 includes the following items:

  • iDash unit (6x4x1 inches)
  • 2x Wideband O2 controller modules installed into iDash
  • 2x Bosch LSU 4.9 Wideband O2 sensor
  • 2x 8ft 6-conductor 18 AWG Wideband O2 sensor Cable
  • 2x O2 bung
  • Wireless router (2.5x1x0.5 inches, new router model)
  • 4ft 4-conductor 18 AWG iDash power cable
  • 2ft 2-conductor 20 AWG router power cable (connects to iDash for power)
  • 4ft ethernet cable
  • 1 Amp replacement fuse
  • 10A replacement fuse



iDash Compatible Products:



















Reviews for iDash
5 out of 5, based on 1 reviews
John from Toronto on Jan 06, 2015
Very happy with the unit and its support. Currently running 4 WB sensors for individual cylinder tuning, egt sensor, fuel pressure, and oil pressure. Great price, awesome unit.
